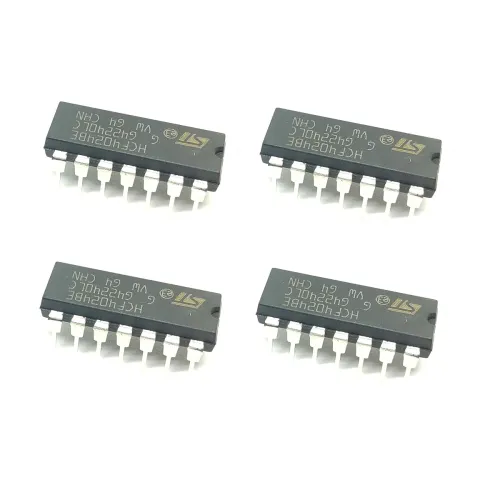

INVENTO 4Pcs 4024 IC HCF4024BE CD4024BE Logic IC Ripple Carry Binary/Divider, 24 MHz, 3 V to 18 V, DIP-14 (ISC 1814)
Product Details
- The CD4024BE is a CMOS 7-stage ripple-carry binary Counter/Divider with master-slave flip-flops counter stages. The state of a counter advances one count on the negative transition of each input pulse a high level on the RESET line resets the counter to its all zeros state. Schmitt trigger action on the input-pulse line permits unlimited rise and fall times. All inputs and outputs are buffered.
- Medium-speed operation; Fully static operation; Buffered inputs and outputs; Standardized, symmetrical output characteristics; Fully static operation; Maximum input current of 1µA at 18V.
- Logic Family / Base Number: CD4024; Counter Type: Ripple Carry Binary / Divider; Clock Frequency: 24MHz; Count Maximum: 7.
- No. of Pins: 14Pins;Supply Voltage : 3V - 18V; Logic IC Family: CD4000; Logic IC Base Number: 4024.
- Package Include: 4 x 4024 IC
