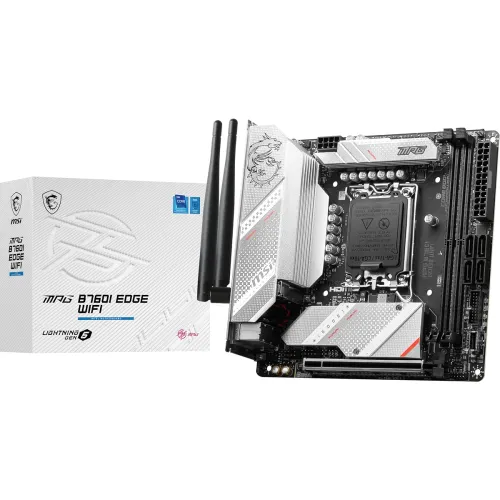

MSI MPG B760I Edge WiFi Mini ITX Motherboard, Mini ITX - Supports Intel 12/13/14th Gen Core Processors, LGA 1700-8 Direct 90A VRM, DDR5 Memory Boost 7200+MHz/OC, Pcie 5.0 X16, 2 X M.2 Gen4, Wi-Fi 6E
About
- 12TH & 13TH GEN CORE, HIGH PERFORMANCE - The MPG B760I EDGE WIFI (Mini-ITX) employs an 8+1+1 Direct (90A, DrMOS) VRM for the Intel B760 chipset (LGA 1700, 12th & 13th Gen Core) with Core Boost architecture for high CPU core count power demands
- INTEGRATED COOLING - VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan header & 8-layer server-grade PCB with 2 oz. thickened copper
- DDR5 MEMORY, PCIe 5.0 x16 SLOT - 2 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 7200+ MHz); Primary PCIe x16 slot supports PCIe 5.0 (128Gbps) and includes Steel Armor
- DUAL M.2 CONNECTORS - Storage options include 2 x M.2 Gen4 x4 64Gbps slots, the primary slot with Shield Frozr to prevent thermal throttling during hyper-fast SSD access
- WI-FI 6E CONNECTIVITY - Network hardware includes an Intel Wi-Fi 6E module with Bluetooth 5.3 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2 Type-C (10Gbps), HDMI 2.1 & DisplayPort 1.4, and 7.1 HD Audio with Audio Boost
| Brand | MSI |
| CPU Socket | LGA 1700 |
| Compatible Devices | Personal Computer |
| RAM Memory Technology | DDR5 |
| Compatible Processors | Intel Celeron, Intel Pentium Gold |
